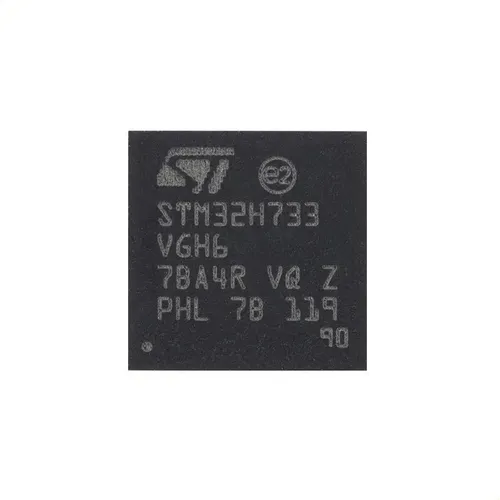

The STM32H733VGH6 from STMicroelectronics is a high-performance 32-bit microcontroller based on the Arm® Cortex®-M7 core. It operates at up to 550 MHz and combines 1 MB of embedded Flash memory with 564 KB of RAM.
The device is supplied in a compact 100-ball TFBGA package measuring 8 × 8 mm, making it suitable for advanced embedded systems requiring high processing performance and limited PCB space.
Key specifications:
- Manufacturer: STMicroelectronics
- Manufacturer part number: STM32H733VGH6
- Product family: STM32H7
- Core: 32-bit Arm® Cortex®-M7
- Maximum CPU frequency: 550 MHz
- Floating-point unit: single- and double-precision FPU
- DSP instruction support
- Flash memory: 1 MB
- RAM: 564 KB
- Package: TFBGA100
- Number of balls: 100
- Package dimensions: 8 × 8 × 1.2 mm
- Ball pitch: 0.8 mm
- Operating voltage: 1.62–3.6 V
- Operating temperature: −40°C to +85°C
- Ethernet MAC
- USB 2.0 High-Speed/Full-Speed support
- Three FD-CAN interfaces
- LCD-TFT controller
- Chrom-ART graphical accelerator
- Flexible external memory controller
- Two Octo-SPI interfaces
- Hardware cryptographic and HASH acceleration
- Multiple ADC, DAC, SPI, I²C, USART and UART interfaces
- RoHS compliant
Availability and ordering:
- Minimum order quantity: 10 pieces
- The displayed price includes applicable EU VAT
- For eligible intra-EU B2B transactions, VAT will be removed during checkout after entering and successfully validating a valid EU VAT ID
- Stock is physically located in Poland
- As long as this product is available for purchase in our online store, it is in stock
- Shipping is available within the European Union and internationally
If you are planning to purchase a larger quantity, please contact us at office@konik.ai for stock confirmation and an individual quotation. Payment by bank transfer is preferred, particularly for larger orders.
The STM32H733VGH6 is an electrostatic discharge and moisture-sensitive semiconductor device. Appropriate ESD-safe handling, storage and packaging procedures must be observed.
